https//:localhost:8444/ not opening

[Max]

i can register the same using zoiper softphone outside network, but with webcall server-5 its not getting registered...

We still cannot register on your SIP PBX with any third party sofphone including Zoiper5:

There is no response from your SIP PBX to oure REGISTER request.

In dashboard i removed the mentioned lines and copied the flahphoner.js locally its working fine in the web browser , but in dashboard giving error as attached

You must open the dashboard page via HTTPS, not HTTP. WebRTC will not work via HTTP.
Also, you should place the script flashphoner.js to your local web server, and open both test page and test script from the same addrees to prevent CORS issue:



[SAGARVG]

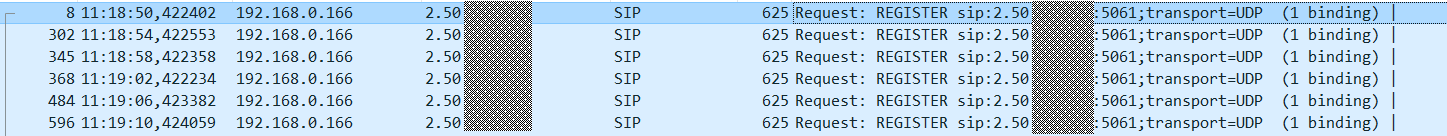

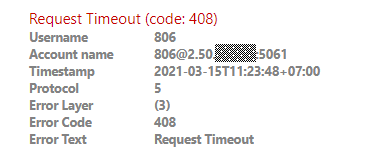

We still cannot register on your SIP PBX with any third party sofphone including Zoiper5:
View attachment 2383
View attachment 2384
There is no response from your SIP PBX to oure REGISTER request.

You must open the dashboard page via HTTPS, not HTTP. WebRTC will not work via HTTP.
Also, you should place the script flashphoner.js to your local web server, and open both test page and test script from the same addrees to prevent CORS issue:
View attachment 2385

I can able to register in Zoiper where as in web call server only i am getting established message.... form has been updated



[Max]

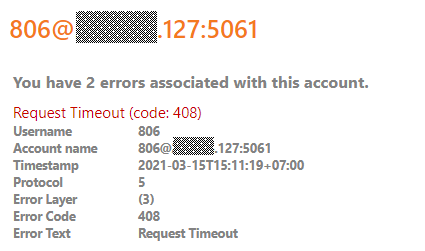

We got the same result

Please check your router/NAT setup, it probably filters source IP addresses.
Or you can collect a report as described here including traffic dumps collected both on client and server side, and send using this form.



[SAGARVG]

We got the same result
View attachment 2387
Please check your router/NAT setup, it probably filters source IP addresses.
Or you can collect a report as described here including traffic dumps collected both on client and server side, and send using this form.

In mobile App its getting registered outside network, transport is TLS does this support in webcall server



[Max]

In mobile App its getting registered outside network, transport is TLS does this support in webcall server

You should use either UDP or TCP transport.



[SAGARVG]

You should use either UDP or TCP transport.

as per the IPPBX provider TCP and UDP is not supported Outside network in this region ,TLS can be used outside network, Whether we can use TLS with Webcall server



[Max]

We raised the ticket WCS-3102 to implement TLS SIP transport support. Will let you know results here.
As quick workaround, use OpenSIPS, Asterix or another SIP PBX supporting UDP and TCP transport.



[SAGARVG]

We raised the ticket WCS-3102 to implement TLS SIP transport support/ Will let you know results here.
As quick workaround, use OpenSIPS, Asterix or another SIP PBX supporting UDP and TCP transport.

Thank you for the information ,existing IP PBX system supports UDP and TCP but due to the ISP provider blocking it is not working in this region, it is must that we need to use TLS in webcall server.. will wait for ticket to implement TLS....



[SAGARVG]

not able to register locally using UDP+TCP protocol ,getting established but not getting registered.

SSH and SIP form updated



[Max]

Good day.
Your trial license seems to be expired:

06:30:58,790 ERROR            Softphone - main License error License period is expired Thu Mar 18 06:30:58 UTC 2021 Thu Mar 18 00:00:00 UTC 2021 Thu Mar 18 06:30:58 UTC 2021

Please refer to sales@flashphoner.com to expand this trial license or to request a new one.



[SAGARVG]

We raised the ticket WCS-3102 to implement TLS SIP transport support. Will let you know results here.
As quick workaround, use OpenSIPS, Asterix or another SIP PBX supporting UDP and TCP transport.

Any result on WCS-3102



[Max]

Any result on WCS-3102

We let you know in this ticket when it will be ready. Please note that we do not provide ETA for new features (SIP TLS support is a new one) in the scope of standard license according to license agreement.
SIP functions take a time to implement. Please be patient.



[Max]

Good day.
Please update to latest WCS build 5.2.926 and add the following parameter to flashphoner.properties file

sip_use_tls=true

SIP TLS signaling should work



[SAGARVG]

Good day.
Please update to latest WCS build 5.2.926 and add the following parameter to flashphoner.properties file

sip_use_tls=true

SIP TLS signaling should work

thank you for the update

still i am not able to register even after software update



[Max]

still i am not able to register even after software update

Please provide actual access to your SIP PBX to register using SIP softphone and WCS (two SIP accounts). The access should be permanent, 24/7, for our developers to test. Please provide credentials using this form.



[SAGARVG]

Please provide actual access to your SIP PBX to register using SIP softphone and WCS (two SIP accounts). The access should be permanent, 24/7, for our developers to test. Please provide credentials using this form.

I updated the form please check



[Max]

We tried to register from WCS and from softphone. In both cases, the following error occurs:

So TLS is used to connect to your PBX with the following WCS settings:

sip_use_tls=true
sip_force_tcp=true

but you should set up correct SSL certificate on SIP PBX, and use its domain name to connect



[SAGARVG]

We tried to register from WCS and from softphone. In both cases, the following error occurs:
View attachment 2455
So TLS is used to connect to your PBX with the following WCS settings:

sip_use_tls=true
sip_force_tcp=true

but you should set up correct SSL certificate on SIP PBX, and use its domain name to connect

WCS setting has been changed ,but still result remain same, whether setting up SSL certificate for SIP PBX is necessary



[Max]

setting up SSL certificate for SIP PBX is necessary

Yes, SSL certificate should be imported on SIP PBX side



[SAGARVG]

Yes, SSL certificate should be imported on SIP PBX side

checked with IPPBX provider but as per them
